Allroyd Fire Services the most experienced and trusted company offers you. A range of fire hydrant and protection equipments. A network of pipes connected to a source of water supply, provided with outlets for tapping water under pressures, Water from outlets is applied manually using hoses and nozzles for fire fighting, Intended to be used by trained fire services staff.
Benefits of Fire Hydrant System
Easy availability of water at required pressure at all places in the premises for fire fighting, Self dependent, quick response in case of fire, Insurance benefits.
FIRE HYDRANT SYSTEM : REQUIREMENTS

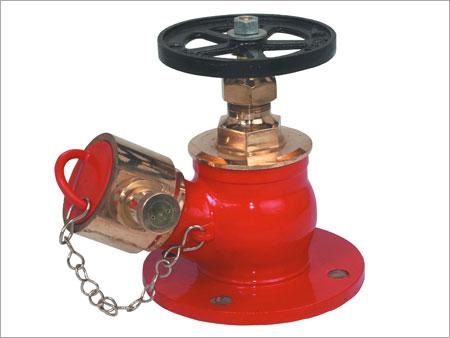

| SINGLE HEADED HYDRANT VALVE:  These Hydrant valve with flanged inlet, stop valve, spindle and cast iron hand wheel. It has a female instantaneous outlet with Blank Cap and is Hydrostatically tested to 21 Kgf/cm2 pressure having a flow rate of 900 LPM at 7 Kgf/cm2 of pressure. It is generally used for external and internal installations. This conforms to IS:5290. | DOUBLE HEADED HYDRANT VALVE:  These Hydrant valve with flanged inlet 2Nos, stop valve, spindle and cast iron hand wheel. It has a 2 Nos female instantaneous outlet with blank cap and is hydrostatically tested to 21 Kgf/cm2 pressure having a flow rate of 900 LPM at 7 Kgf/cm2 of pressure. It is generally used as an internal hydrant for high rise buildings and as a external hydrant for refineries. This confirms to IS : 2190 type “B” | SUPER JET WATER MONITOR:  This is specially designed for fixing on hydrant stand posts or on a specially built trolley in case of portable units. Monitor rotates 360° and elevates between +150° to -20° with flow rate upto 2700 LPM at 7 Kgf/cm2. Conforms to IS:8442. Generally water monitors are used in Oil Jetties, Oil Refineries and Chentol Plants etc. |
 HOSE CABINET: Hose Cabinet is fabricated out of MS sheet metal having glass fronted twin doors with locking arrangement and having a built-in-key. The cabinet is suitable to house 2 Nos. of hoses and a branch pipe. The cabinet is painted with P.O. Red outside and white paint inside. |  FIRST AID HOSE REEL: This reel is made out of MS sheet, consisting of Hose guide on which Rubber hose of 19 mm dia. of required length is kept wound. It has a swinging type motion which allows a 180° swing and conforms to IS:884/85. |  FIRE FIGHTING HOSE & BRACH PIPE: This is a flexible pipe which is bound on one side with male and female instantaneous type gun metal coupling pair. Hoses are available in lengths of 7.5mtrs, 15mtrs, 22.5mtrs & 30mtrs length and the same can be supplied in the “Flax” canvas type, impregnated rubber to control percolation type. And Brach pipe having 63mm dia instantaneous type male inlet and on the other side hexagonal nozzle of 20mm dia. As per IS:903/93. |
