FIRE SPRINKLER SYSTEM

Allroyd Fire Services the most experienced and trusted company offers you. A range of fire sprinkler and protection equipments, A network of pipes connected to a source of water supply, provided with outlets for tapping water under pressures, A facility designed to discharge water automatically in sufficient density (liters/minute/SQ.M) to control or extinguish fire in its early stage. To give alarm and alert people.

Benefits of Fire Sprinkler System

Easy availability of water at required pressure at all places in the premises for fire fighting, Control or extinguishment of fire in its early stage, To give alarm and alert people, Automatic extinguishment of fire during non working hours, Controlled use of water, quick response in case of fire, Rebate in Insurance premium.

FIRE SPRINKLER SYSTEM: REQUIREMENT

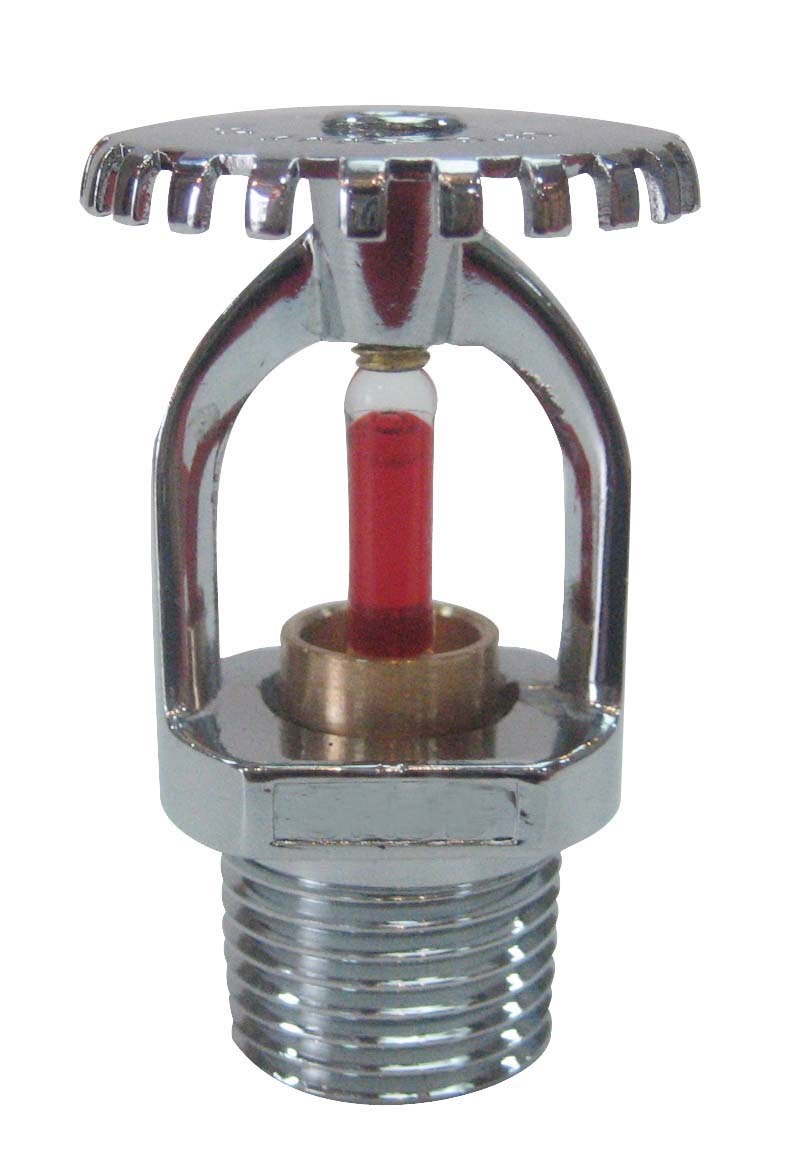

UPRIGHT SPRINKLER:

Response: Standard/ Quick

Coverage: Produce a hemispherical water distribution pattern below the deflector

Installation: Upright intstalled in accordance with the standard installation rules

Temp. Rating: 58”, 68” & 79°C /175° F

Maximum Service Pressure:175psig/1..2MPA(12bar)

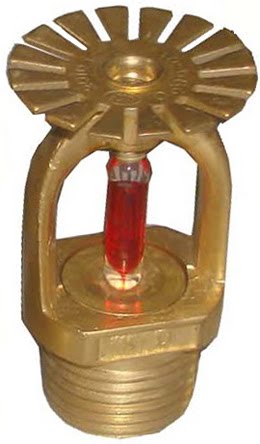

PENDENT SPRINKLER:

Response: Standard / Quick

Coverage: Produce a hemispherical water distribution pattern below the deflector

Installation: Pendent installed in accordance with the standard installation rules

Temp. Rating: 58”, 68” & 79° C /175° F

Maximum Service Pressure: 175psig/1..2MPA(12bar)


HORIZONTAL SIDE WALL SPRINKLER:

Response: Standard/ Quick

Coverage: Water discharge is directly primarily outward & downward in a quarter Spherical pattern, a portion of spray is also directed towards back wall.

Installation: Side wall installed in accordance with the standard installation rules

Temp. Rating: 58”, 68” & 79° C/175° F

Maximum Service Pressure: 175psig/1..2MPA(12bar)

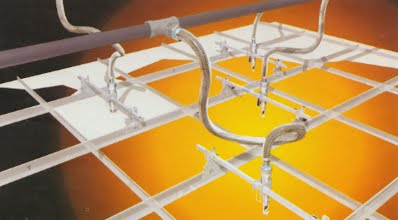

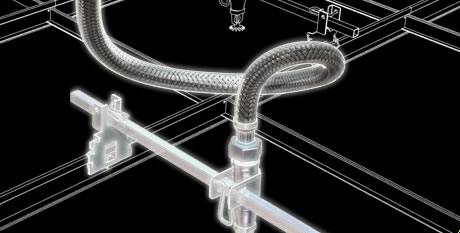

FLEXIBLE SPRINKLER DROPS

Sprinkler Drops are designed to significantly reduce labor and installation costs. Available in 5 different lengths with either a 1/2’’ or 3/4’’ NPT on reduced thread, as, per NFPA 13, 13R & 13D, as well as UL 1474 standards for safety regarding, but not limited to, pressure cycling, corrosion resistance, flow characteristics, vibration resistance, leakage and mechanical as well as hydrostatic strength.
